Adjustable Time Good Repeatability Easy Operation Pedal Type Spot Welding Machine

Adjustable Time Good Repeatability Easy Operation Pedal Type Spot Welding Machine

Nombre De La Marca:	XWH
Número De Modelo:	DN-10, DN-16, DN-25 y DN-35
Cuota De Producción:	1
Precio:	USD600-USD700
Condiciones De Pago:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad De Suministro:	500 juegos/mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

Nombre del producto:

Soldador de acero inoxidable Machine del punto

Aplicación:

Industria de la hoja metálica

Tipo de máquina:

Máquina de soldadura

Palabra clave:

Soldador del punto del alambre de chapa

Función:

Soldadura por puntos de la chapa

Servicio postgarantía:

Soporte técnico de video, soporte en línea y repuestos

Servicio postventa proporcionado:

Repuestos gratis, instalación de campo, puesta en marcha y capacitación

Certificación:

Detalles de empaquetado:

caja de madera

Capacidad de la fuente:

500 juegos/mes

Resaltar:

adjustable pedal spot welding machine

manual spot welder with repeatability

easy operation pedal welder

Descripción del producto

Adjustable Time Good Repeatability Easy Operation Pedal Type Spot Welding Machine

Product Introduction:

When standard welding machines cannot meet your unique welding shape requirements, this customized foot operated spot welding machine is the tool you need. We are well aware that sometimes it is a small welding joint that hinders efficiency. Therefore, we provide customized services for hetero welding joints made of chromium zirconium copper or tungsten materials to accurately match your product profile. Combined with its lightweight body and simple and reliable foot pressure mode, it can effectively improve your welding efficiency and quality for special workpieces, making "inaccurate welding and weak welding" a thing of the past.

Technical Parameters:

Models/Item	DN-35	DN-25	DN-16	DN-10
Rated Power at 50%	35KVA	25KVA	16KVA	10KVA
Rated Primary Power	380V	380V	380V	380V
Rated Primary Current	92A	66A	42.1A	26.3A
Rated Duty Cycle	10%	10%	10%	10%
Secondary Unload Voltage	2.6～4.2V	2.3～3.55V	1.98～3.01V	1.65～2.4V
Adjustment Rated	4	4	4	4
Welding Time Adjustment	0～9.99s	0～9.99s	0～9.99s	0～9.99s
Arms Length	280mm	280mm	280mm	260mm
Max. Welding Capacity	3+3mm	2.5+2.5mm	2+2mm	1.5+1.5mm
Cooling Ways	Main Transformer: Air air cooling Electrode: Water cooling

Features:

1)Adopt a lever-petal type spring pressure structure, easy to operate and maintain

2) Adjustable welding time and good welding repeatability.

3)Widely used in automobile, aviation, construction, machinery, metal products, electrical switches and so on.

4)Adopt SCR contactless switching circuit, so it can turn off circuit quickly and reliably.

5)Widely used for welding of low carbon steel, wire, stainless steel plate etc.

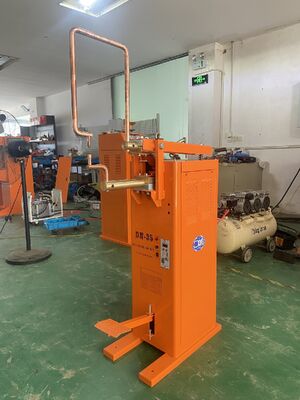

General Structures:

Adjustable Time Good Repeatability Easy Operation Pedal Type Spot Welding Machine 0

Customized Service:

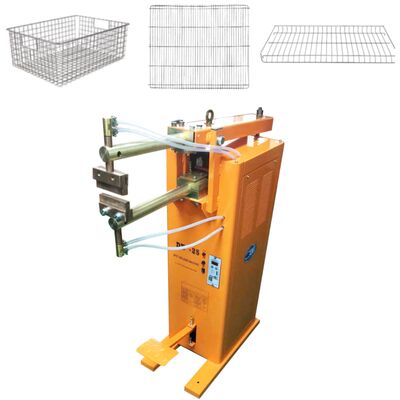

Standard Type: general structures with pointed electrode, can weld welding wire crafts, daily hardware, furniture lighting, box and sheet metal parts.

Adjustable Time Good Repeatability Easy Operation Pedal Type Spot Welding Machine 2

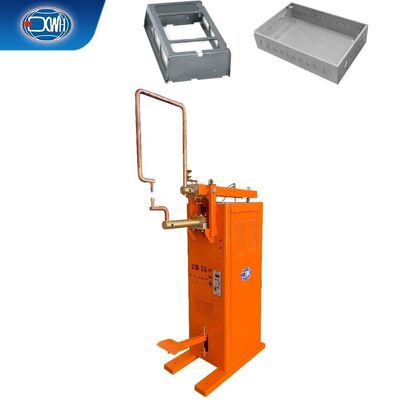

Customized Type: Its welding arm can be customized and lengthened or equipped with a dedicated welding head according to your specific needs, making it easy to handle welding of products such as metal wire mesh and steel mesh. In addition, the welding arm material is available in high conductivity chromium zirconium copper or high-temperature resistant tungsten materials, which can even meet the welding requirements of special materials such as copper. It is a truly economical and practical welding machine designed for diverse scenarios.

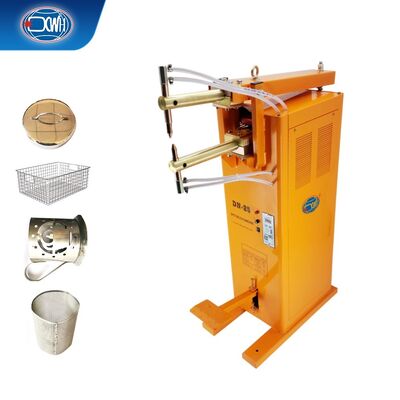

Application:

Adjustable Time Good Repeatability Easy Operation Pedal Type Spot Welding Machine 4

Adjustable Time Good Repeatability Easy Operation Pedal Type Spot Welding Machine 5

Please note: the welding machine can be custom-made according to your requirements.

Frequently Asked Questions:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
